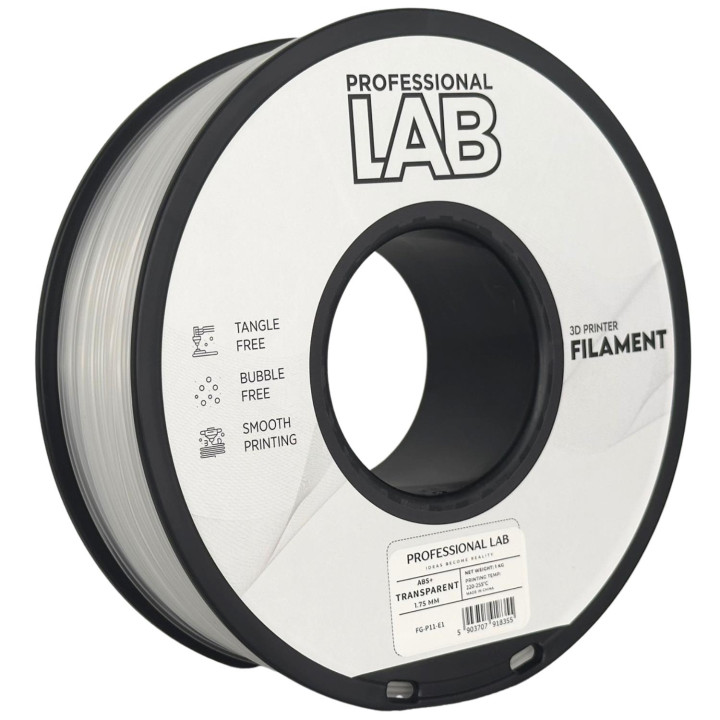

Filament Prof. Lab ABS+ Transparent Clear Engineering Grade 1.75m

Filament Prof. Lab ABS+ | Banner (Colorless) | Durable Engineering Material | 1.75mm | 1kg

Combine proven industrial durability with a unique light transmittance effect. Prof. Lab ABS+ (Acrylonitrile-Butadiene-Styrene) in the Transparent (Colorless) version is a professional engineering filament with increased impact resistance, created for the production of durable parts that require optical inspection or backlighting. Thanks to the optimized polymer structure, this material is characterized by exceptional stiffness, high structural impact strength and excellent interlayer adhesion. The lack of covering pigments allows you to obtain translucent or transparent elements (depending on the wall thickness, filling density or vase mode), which is perfect for designing housings with signaling diodes, covers or laboratory elements. The material has excellent resistance to higher operating temperatures and chemicals. It is an ideal choice for technical applications where resistance to cracking under load and the possibility of post-processing are crucial.

Features and benefits:

• High mechanical resistance and impact resistance: Elements printed in ABS+ from Prof. Lab is characterized by excellent hardness and resistance to cracking under the influence of impacts and dynamic loads. The material is ideal for moving and working structures.
• Transparency and illumination effect: The natural translucency of the material allows you to control the degree of transparency of the model - from a slightly diffused, satin matte finish to high light transmittance (e.g. when printing with a minimum number of outlines). It perfectly highlights the internal structure and works with LED panels.
• Susceptibility to mechanical and chemical processing: Prints can be easily post-processed - grinding, drilling, threading and painting. Importantly, for the colorless version, subjecting the model to a chemical smoothing process using acetone vapor allows for almost complete fusion of the optical layers and obtaining a smooth, highly transparent glass-like surface.
• Constant diameter and dimensional accuracy: Rigorous control of the 1.75 mm line geometry (with constant tolerance up to ±0.03 mm) guarantees stable, repeatable and smooth flow in each extruder without the risk of thickening and nozzle clogging.
• Printing tips (Important): As a classic engineering material with a specific processing shrinkage, ABS+ requires stable environmental conditions. To obtain the best results and minimize edge curling (warping), it is necessary to use a well-heated table (95°C - 110°C), a closed working chamber (enclosure) and ensure good ventilation in the room.

Technical parameters and suggested settings:

Filament diameter: 1.75 mm (tolerance ±0.03 mm) Material net weight: 1kg Spool dimensions: Outer diameter: 195 mm | Centering hole: 75 mm Brand / Line: Prof. Lab (Engineering/Technical Series) Plastic type: ABS+ (Modified Acrylonitrile-Butadiene-Styrene) Color variant: Transparent (Colorless / Translucent) Nozzle temperature: 220°C – 250°C Table temperature: 95°C – 110°C Hardware requirements: A heated table, a closed working chamber and efficient ventilation to protect against drafts are required. Compatibility: Most FDM/FFF 3D printers are equipped with a heated bed and a closed working space Producer: Imagine s.c., Cholerzyn 501, 32-060 Liszki, NIP: PL6772374005
