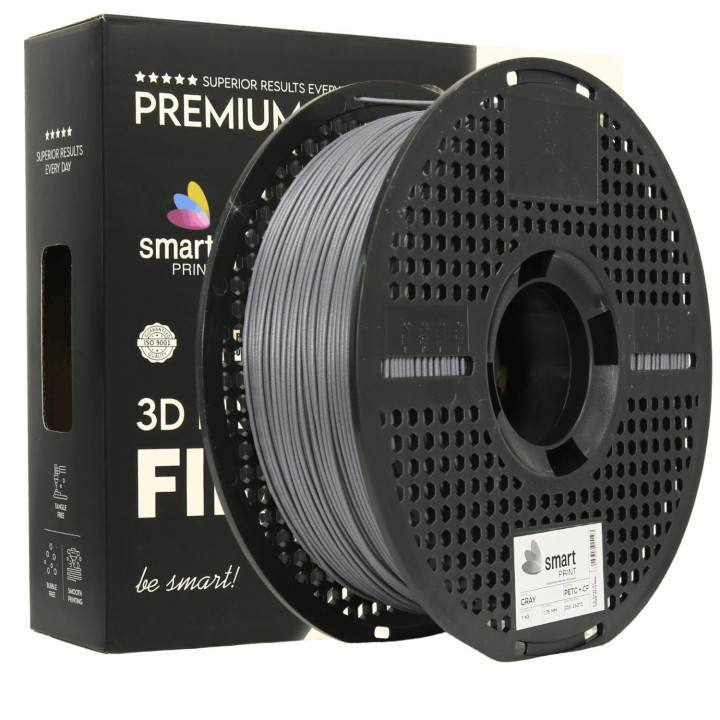

Filament Smart Print PETG + CF Gray Carbon Fiber 1.75mm 1kg

Smart Print PETG + CF filament | Gray (Gray with Carbon Fiber) | 1.75mm | 1kg

Bring your prints to the highest level of structural rigidity and modern aesthetics. Smart Print PETG + CF in Gray is an advanced composite filament, created by combining a high-quality PETG polymer base with real, cut carbon fibers (Carbon Fiber). The addition of carbon structures dramatically changes the physical properties of the material: it drastically reduces processing shrinkage and warping, increases thermal resistance and gives the surfaces a unique, elegant, matte finish that perfectly masks layer boundaries. The dark gray, graphite shade with a characteristic carbon texture makes it an ideal choice for the production of mechanically loaded functional parts, drones, mounting elements, handles and technical details intended for outdoor use.

Features and benefits:

• Extreme stiffness and stability: Carbon fibers act as internal reinforcement, significantly increasing the elastic modulus and tensile and impact resistance compared to classic pure PETG.
• Low shrinkage and impeccable geometry (Low Warping): Limiting the thermal shrinkage of the polymer allows for trouble-free printing of large, flat and geometrically complex engineering elements, guaranteeing perfect dimensional fit.
• Excellent aesthetics and layer masking: The composite structure gives the prints a unique, rough, matte structure, which makes the seam lines almost invisible, giving the elements a professional, factory look.
• High line accuracy and resistance: Fixed diameter of 1.75 mm (with a tolerance of up to ±0.03 mm) ensures stable material feeding. Important equipment tip: Due to the strong abrasive properties of carbon fibers, printing requires the use of a hardened nozzle (e.g. made of hardened, coated or ruby ​​steel). Standard brass nozzles will quickly become uncalibrated.

Technical parameters and suggested settings:

Filament diameter: 1.75 mm (tolerance ±0.03 mm) Material net weight: 1kg Spool dimensions: Outer diameter: 195 mm | Centering hole: 75 mm Brand / Line: Smart Print (Carbon Composite Series) Plastic type: PETG + Carbon Fiber (Glycol modified PET with carbon fiber) Color variant: Gray (Matte dark gray / Graphite / Carbon) Nozzle temperature: 255°C – 270°C Table temperature: 80°C – 90°C Nozzle Requirements: Hardened nozzle required (hardened/steel). Recommended diameter ≥ 0.4 mm. Working Tips: The use of a closed chamber or cover and gentle airflow improve the cohesion of the layers and the final surface quality. Compatibility: FDM/FFF 3D printers adapted to work with composite materials and higher temperatures. Producer: Imagine s.c., Cholerzyn 501, 32-060 Liszki, NIP: PL6772374005
