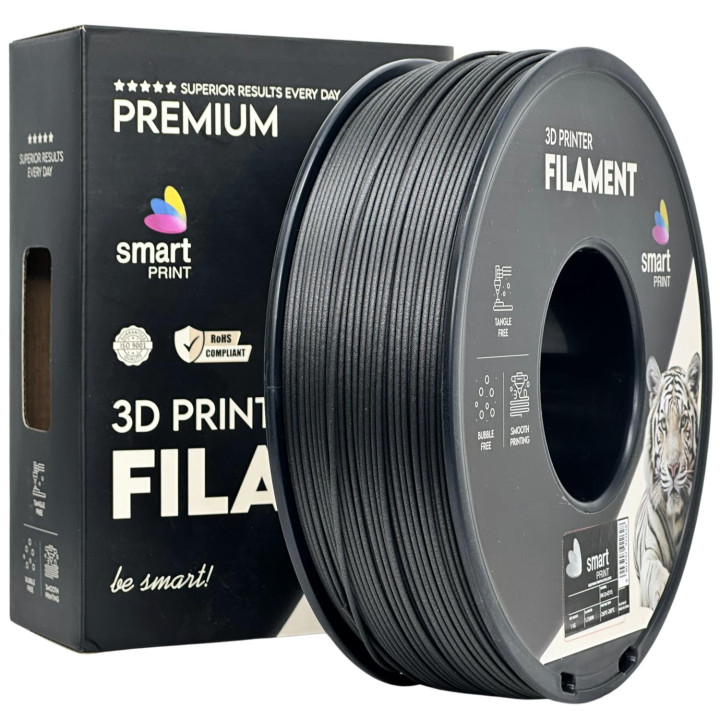

Filament Nylon PA12 CF15 Smart Print Carbon Fiber Black 1.75 mm 1 kg

Filament Smart Print PA12 + CF15 1.75 mm | Matte Black with Carbon Fiber | 1 kg

Discover industrial strength in 3D printing technology. Smart Print PA12 + CF15 engineering filament in a deep, matte shade of black on a full 1 kg spool is an advanced composite of polyamide 12 reinforced with 15% cut carbon fibers (Carbon Fiber). It provides exceptional structural stiffness, reduced own weight and increased thermal resistance up to 170°C. Modern additives and inhibitors improve interlayer cohesion and color stability, guaranteeing professional results in demanding applications.

Thanks to the admixture of carbon fibers, the filament has minimal processing shrinkage and a minimal tendency to warp (low warp), which allows for precise work on a heated worktable in the range of 50°C - 60°C. The matte, slightly rough outer surface perfectly masks the lines where the layers are joined, giving the finished models a factory-made, elegant look without the need for sanding. Excellent chemical resistance, impact strength and dimensional stability make it a material created for the production of drone frames, mounting brackets, technical housings, workshop tools and fully functional machine parts exposed to high stress.

The main advantages of the Smart Print PA12 + CF15 filament:

• Carbon fiber reinforcement (15% Carbon Fiber): Extreme modular stiffness and high mechanical strength while maintaining low weight of the detail.
• High heat resistance: Thermal stability of the structure up to 170°C, suitable for work near engines and heating components.
• Factory matte finish: Elegant, satin-matt texture that naturally reduces the visibility of stripes between layers.
• Minimum processing shrinkage: Carbon fibers drastically reduce edge deformations, making it easier to print larger elements.
• High dimensional accuracy: Strict diameter tolerance (±0.03 mm) guarantees stable extrusion and repeatability of geometry.
• Industrial use: Perfect raw material for creating racing drone frames, spare parts, mountings and functional prototypes.

Technical specifications:

• Brand / Line: Smart Print
• Producer: Imagine s.c., Cholerzyn 501, 32-060 Liszki (NIP: PL6772374005)
• Material: Carbon fiber modified polyamide 12 (PA12 + CF15)
• Color: Matte black (Carbon Black)
• Filament diameter: 1.75 mm
• Dimensional tolerance: ± 0.03 mm
• Net weight of material: 1.0 kg (1000 g)
• Spool dimensions: Outer diameter 195 mm, mounting hole 75 mm
• Print surface: Matte, slightly structured
• Condition: Brand new, hermetically packed on a spool with a moisture absorber

Suggested 3D printing parameters:

• Head (nozzle) temperature: 180°C – 240°C
• Working table temperature: 50°C – 60°C
• Recommended nozzle: Due to the abrasive properties of carbon fibers, it is recommended to use a hardened or hardened steel nozzle with a minimum diameter of 0.4 mm
• Working chamber: Not required (draft protection recommended)
• Adhesives: Recommended for secure holding of the first layer (Dimafix, StickIT, adhesives for polyamides)
• Compatibility: FDM/FFF printers supporting 1.75 mm filament with a heated bed
