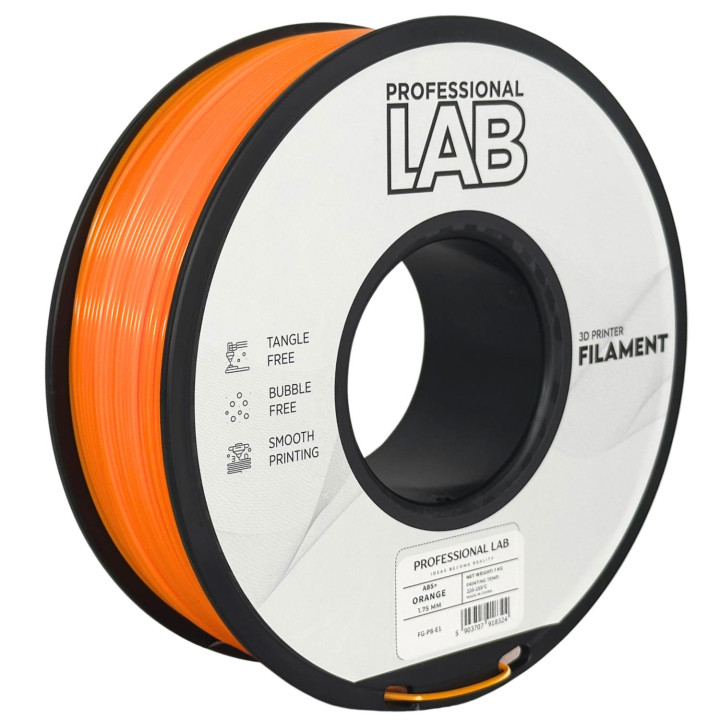

Filament ABS+ Orange 1.75mm 1kg Orange High-Strength Smart Print

Smart Print ABS+ filament 1.75mm 1KG – Orange (Reinforced Industrial Orange) | Premium Prof. Lab

Choose uncompromising structural strength and excellent impact resistance. Professional Smart Print ABS+ filament in an intense, warning shade of orange (Orange) is an advanced premium engineering material from the prestigious Prof series. Lab, manufactured in Poland by Imagine s.c. The ABS+ formula has been specially modified to meet the requirements of printing machine parts, functional prototypes and mechanical components. Compared to classic ABS plastic, this material is characterized by reduced processing shrinkage, improved adhesion to the substrate and outstanding interlayer cohesion. The expressive orange color gives the elements a technical character and facilitates their location in complex mechanical systems. It is an ideal choice for the production of parts exposed to dynamic loads, high temperatures and difficult operating conditions.

Properties and advantages of the Smart Print ABS+ Orange filament:

• High impact strength and mechanical resistance: Details made of ABS+ show excellent resistance to impacts, cracks and stresses. The material is perfectly amenable to mechanical processing (drilling, grinding, threading).
• Improved thermal resistance: Ready-made prints stably withstand thermal loads, maintaining their geometry and stiffness at much higher temperatures than standard materials such as PLA or PET-G.
• Optimized formula (Reduced Shrinkage): The use of advanced structural modifiers facilitates control over the thermal shrinkage of the polymer, which minimizes the risk of wall cracking at high altitudes and facilitates obtaining the correct dimensions.
• Possibility of smoothing with acetone vapors: As a material from the acrylonitrile-butadiene-styrene group, ABS+ fully reacts with acetone. This allows you to obtain a perfectly smooth, shiny surface (injection appearance) and full encapsulation of the model.
• Rigorous diameter control: Constant dimensional precision of the thread of 1.75 mm with a strict tolerance of +/- 0.03 mm ensures fully stable and uniform dosing of the material by the extruder.

Technical parameters and specifications:

Material: ABS+ (Modified acrylonitrile butadiene styrene) Filament diameter: 1.75mm Dimensional tolerance: +/- 0.03mm Color: Orange (Classic Technical Orange) Surface Finish: Matte-satin (shiny after smoothing with acetone) Material weight: 1.0 kg net Outer diameter of the spool: 195mm Center hole diameter: 75mm Compatibility: 3D printers equipped with a heated table and a closed working chamber Producer: Imagine s.c. (Polish product)

Recommendations and technical conditions for printing:

Due to the technical specificity of ABS-based engineering materials, obtaining the highest mechanical parameters and limiting shrinkage requires meeting certain operating conditions:

• Head temperature (hotend): 220°C - 250°C (Tip: A higher temperature in this range improves the melting of layers and increases the monolithicity of the detail)

• Table temperature (bed): 95°C - 110°C (Stable, high heating of the platform required; it is recommended to use additional adhesive agents, e.g. Dimafix, Magigoo adhesives or dedicated pads)

• Enclosure: Working with ABS+ material requires the use of a closed printer housing. This protects the model against drafts and sudden temperature changes, which are the main cause of delamination of walls and curling of the edges of the detail.

• Ventilation and environment: During thermal processing of the polymer, a characteristic odor and microparticles are released. The printing process must be carried out in a well-ventilated room or use printers with an air filtration system (HEPA/Activated carbon).

• Print cooling: It is recommended to turn off the air flow to the model (0%) or use the minimum flow (10-20%) for small elements and very fast nozzle passes.
