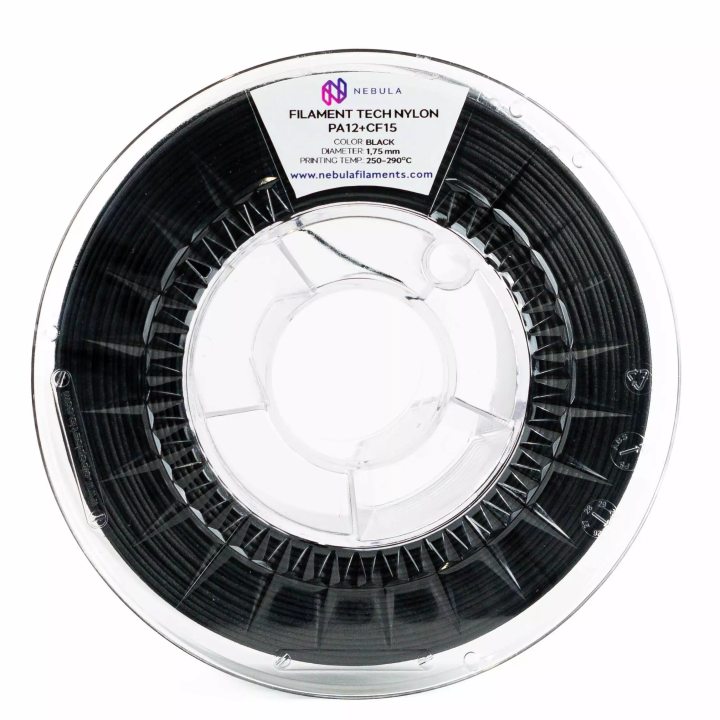

Filament Nebula NYLON PA12 CF15 Carbon 1.75mm 4kg Black

Filament Nebula NYLON PA12 CF15 Carbon 1.75mm 4kg Black

Filament Nebula NYLON PA12 CF15 1.75 mm | Carbon Black (Matte Black) | Industrial Spool 4 kg

Choose uncompromising production efficiency, the highest structural stiffness and industrial durability class. Nebula NYLON PA12 CF15 filament in a shade of matte carbon black (Black) on a powerful 4 kg industrial spool is an advanced composite based on durable polyamide 12 reinforced with 15% chopped carbon fibers (Carbon Fiber). Created for mass production of technical parts, large-scale printing and the most demanding applications in the aviation, motorsport and drone industries.

The addition of carbon fibers ensures an unprecedented stiffness-to-weight ratio, drastically increases the resistance to dynamic loads and minimizes deformations of the cooled detail. Polyamide PA12, in turn, is characterized by much lower moisture absorption than standard PA6 and excellent chemical resistance to oils, greases, fuels and solvents. Ready-made prints are distinguished by an aesthetic, deep matte finish that effectively masks the joints of the layers. The 4 kg format is a solution dedicated to 3D printer farms and long-hour industrial tasks without downtime. Due to the abrasive properties of carbon fibers, it is necessary to use a hardened nozzle (made of hardened steel, ruby ​​steel or tungsten carbide).

Main advantages of the Nebula NYLON PA12 CF15 filament:

• Industrial 4 kg roll: Designed for 3D printer farms, continuous production and the production of very large elements without the risk of running out of filament during operation.
• 15% carbon fiber reinforcement (CF15): Extreme modulus of elasticity, hardness and tensile strength while maintaining extremely low own weight.
• High chemical and thermal resistance: The PA12 matrix maintains full operational parameters in an aggressive industrial environment and at elevated operating temperatures.
• Deep black matte: The elegant, satin-matte surface makes the prints look like injection molded parts.
• Excellent machinability: Possibility of precise cutting, milling, drilling, thread cutting and technical fitting.

Technical specifications:

Producer: Nebula Filaments Series: NYLON PA12 CF15 Material: Polyamide 12 (PA12) reinforced with 15% carbon fiber (Carbon Fiber) Color: Black (Matte black / Carbon) Filament diameter: 1.75mm Material net weight: 4.0 kg (4,000 g) Print area: Matte (matte) Nozzle Type: Recommended hardened nozzle (hardened steel/tungsten carbide) Condition: Brand new, hermetically packed on a spool with a moisture absorber

Suggested 3D printing parameters:

• Head (nozzle) temperature: 250°C – 290°C
• Working table temperature: 90°C – 120°C
• Printing speed: 25 – 60 mm/s
• Air per print: Moderate
• Working chamber: Not required (stable ambient temperature recommended)
• Adhesives: Required (e.g. adhesives for polyamides, Magigoo PA, Dimafix)
• Drying conditions: Required - drying at 80°C for 4 hours before printing
